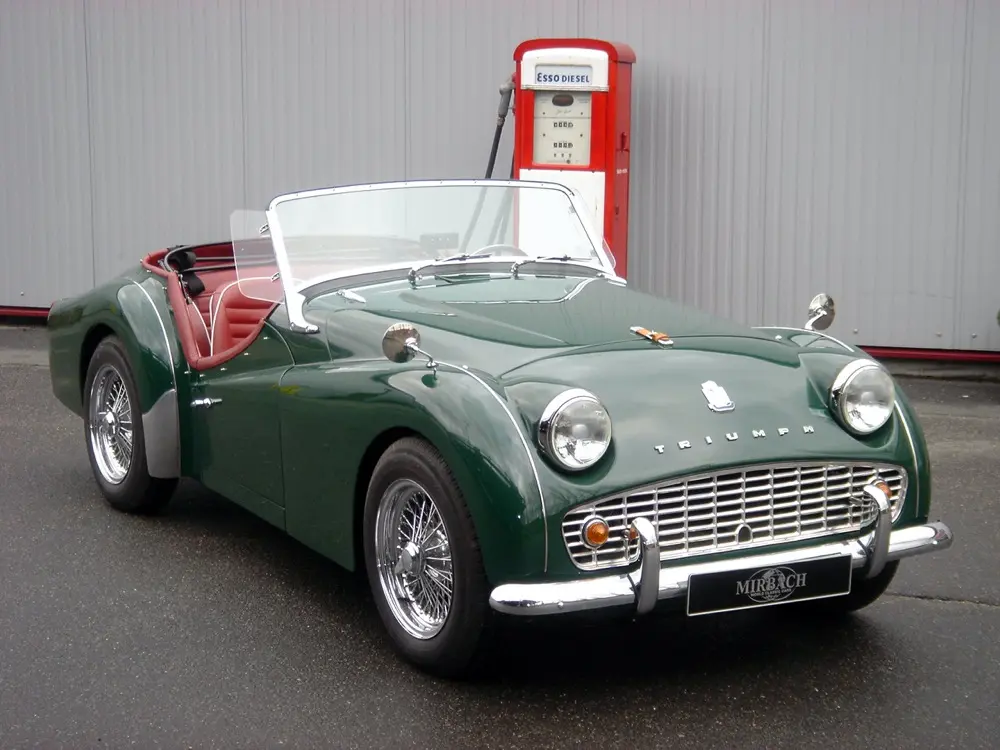

The Triumph TR3 is a sports car produced between 1955 and 1962 by Standard-Triumph in England. The facelifted variant, popularly but unofficially known as the TR3A, entered production in 1957 and the final version, unofficially the TR3B, was produced in 1962. The car was powered by a 1991 cc straight-4 OHV engine initially producing 95 bhp (71 kW; 96 PS), an increase of 5 hp over the TR2 thanks to the larger SU-H6 carburetors fitted. This was later increased to 100 bhp at 5000 rpm. A hardtop car with overdrive tested by the British magazine The Motor in 1956 had a top speed of 105.3 mph and could accelerate from 0 60 mph in 10.8 seconds.
Frequently Asked Questions
How do I adjust the clutch in a Triumph TR3?
To adjust the clutch in a Triumph TR3, locate the clutch slave cylinder on the side of the transmission and loosen the locknut on the pushrod. Turn the pushrod in or out to achieve the desired clutch pedal free play, typically around 1/2 to 3/4 of an inch. Once the desired adjustment is made, tighten the locknut to secure the pushrod in place. Test the clutch operation and adjust further if necessary.
How do I adjust the ignition timing in a Triumph TR3?
To adjust the ignition timing in a Triumph TR3, start by locating the distributor at the front of the engine. Disconnect the vacuum advance hose and use a timing light to illuminate the timing marks on the crankshaft pulley and the timing scale on the engine block. Loosen the distributor hold-down bolt and rotate the distributor clockwise or counterclockwise to achieve the desired ignition timing, usually specified in degrees before top dead center (BTDC). Once the timing is set, tighten the hold-down bolt and reconnect the vacuum advance hose.
How do I adjust the valve clearance in a Triumph TR3?
To adjust the valve clearance in a Triumph TR3, start by removing the valve cover to access the valves. Rotate the engine to bring each cylinder to top dead center (TDC) on the compression stroke. Using a feeler gauge, measure the gap between the valve stem and the rocker arm. Adjust the clearance as needed by loosening or tightening the adjusting screw on the rocker arm, then recheck the clearance and repeat the process for each valve.
How do I bleed the brakes on a Triumph TR3?
To bleed the brakes on a Triumph TR3, start with the brake furthest from the master cylinder (usually the rear passenger side). Attach a clear plastic tube to the bleeder valve and submerge the other end in a container partially filled with brake fluid. Have a helper press the brake pedal several times, then hold it down. Open the bleeder valve to allow the old fluid and air bubbles to escape. Close the valve and repeat the process until you see clean, bubble-free fluid coming out.
How do I change the oil in a Triumph TR3?
To change the oil in a Triumph TR3, you will need to locate the oil drain plug on the bottom of the engine and remove it using a wrench. Once the old oil has drained completely, replace the drain plug and proceed to remove the oil filter. Install a new oil filter and add the recommended amount of fresh oil to the engine, taking care not to overfill it.
How do I check the transmission fluid level in a Triumph TR3?
To check the transmission fluid level in a Triumph TR3, start the engine and allow it to reach operating temperature. Park the vehicle on a level surface and engage the parking brake. Locate the transmission dipstick, usually located near the back of the engine bay. Remove the dipstick, wipe it clean, reinsert it fully, and then remove it again to check the fluid level. The fluid should be within the designated “full” range on the dipstick.
How do I replace a broken headlight bulb on a Triumph TR3?
To replace a broken headlight bulb on a Triumph TR3, start by disconnecting the negative battery terminal for safety. Access the back of the headlight assembly by removing the retaining screws or clips. Carefully disconnect the electrical connector from the bulb and remove the old bulb from the socket. Install a new bulb, making sure not to touch the glass portion, and reconnect the electrical connector before securing the headlight assembly back in place.
How do I replace the battery in a Triumph TR3?
To replace the battery in a Triumph TR3, start by disconnecting the negative battery terminal followed by the positive terminal. Remove any retaining brackets or clamps securing the battery in place. Lift the old battery out of the battery tray and place the new battery in its position. Secure the battery with the retaining brackets or clamps and reconnect the positive terminal followed by the negative terminal. Ensure the terminals are tight and corrosion-free.
How do I replace the fuel filter in a Triumph TR3?
To replace the fuel filter in a Triumph TR3, start by relieving the fuel system pressure by disconnecting the fuel pump fuse or relay and cranking the engine until it stalls. Locate the fuel filter, usually along the fuel line or near the fuel tank, and use a wrench to loosen the fittings on both sides of the filter. Remove the old filter and install the new one, ensuring the flow direction arrow on the filter is correctly aligned. Tighten the fittings and restore the fuel system pressure before starting the engine.
How do I replace the thermostat in a Triumph TR3?
To replace the thermostat in a Triumph TR3, locate the thermostat housing on the engine and remove the mounting bolts or clips securing it. Carefully lift off the housing to expose the old thermostat. Remove the old thermostat and gasket, ensuring any remaining gasket material is cleaned off. Install the new thermostat and gasket, making sure the thermostat is oriented correctly. Reinstall the housing, tightening the mounting bolts or clips to the specified torque. Refill the cooling system with coolant and check for any leaks after completing the replacement.
How do I troubleshoot an electrical issue in a Triumph TR3?
When troubleshooting an electrical issue in a Triumph TR3, start by checking the fuses to ensure none are blown. Inspect the battery terminals for corrosion and ensure they are securely connected. Check the wiring connections and harnesses for any signs of damage or loose connections. Utilize a multimeter to test for voltage at different points in the electrical system and trace the circuit to identify any faults. If the issue persists, consult the electrical diagrams in the repair manual or seek professional assistance.
How often should I replace the spark plugs in my Triumph TR3?
It is recommended to replace the spark plugs in your Triumph TR3 every 10,000 to 12,000 miles or as specified in the manufacturer’s guidelines. Regularly inspect the spark plugs for signs of wear, such as excessive electrode erosion, deposits, or a worn insulator. These signs can indicate a need for replacement even before reaching the recommended mileage interval.
What is the recommended tire pressure for a Triumph TR3?
The recommended tire pressure for a Triumph TR3 can vary depending on the specific model and tires being used. It is important to refer to the manufacturer’s guidelines or the tire placard located on the vehicle. However, as a general guideline, most Triumph TR3 models typically require a tire pressure between 26-32 psi for optimal performance and safety.
What type of coolant should I use in my Triumph TR3?
For your Triumph TR3, it is recommended to use a high-quality ethylene glycol-based coolant, mixed with distilled water. The coolant mixture should have a 50/50 ratio of coolant to water. This will provide the necessary protection against freezing in cold temperatures and prevent overheating in warmer conditions.
